Comp Gate WG40, black, 1,0 Bar | Turbosmart

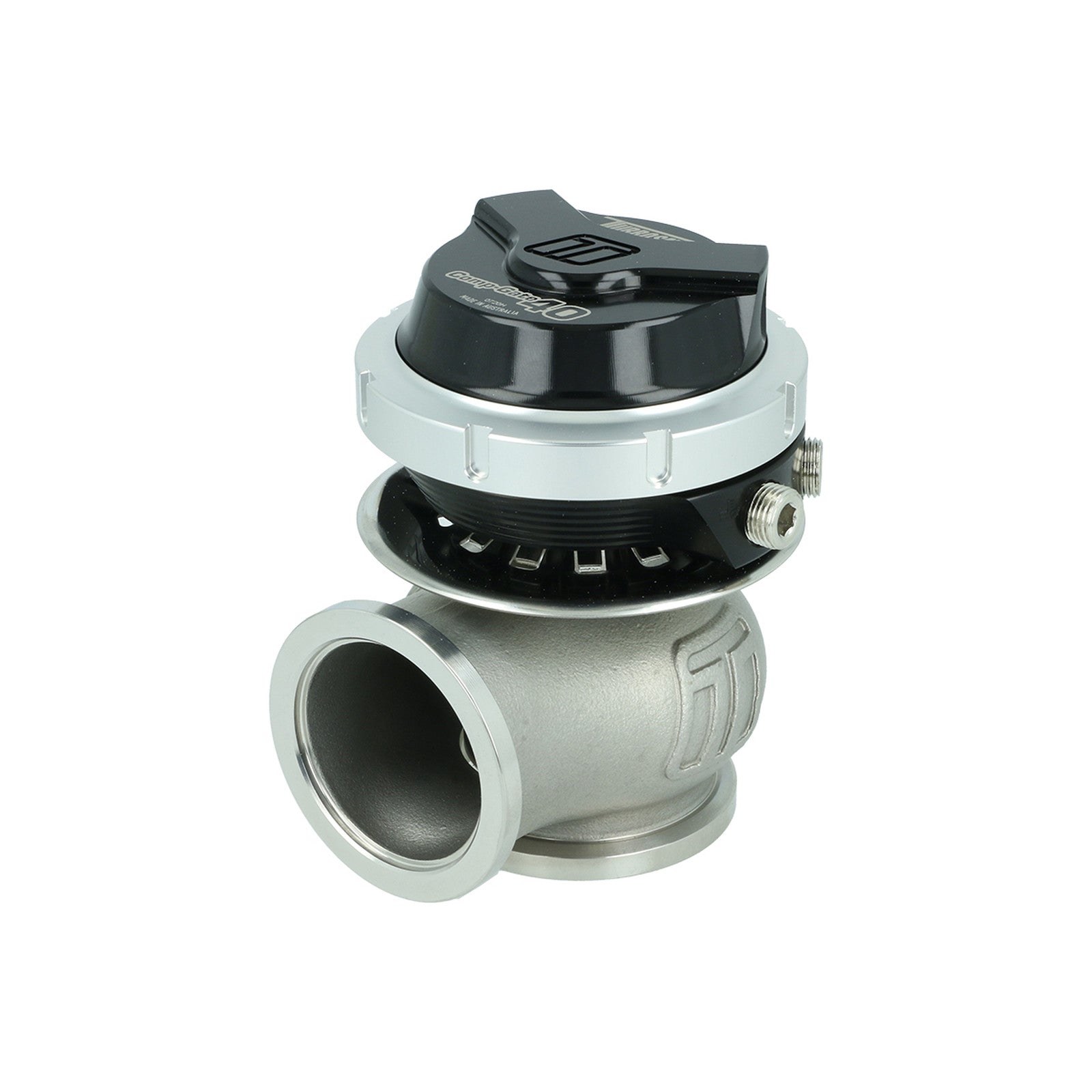

The GenV WG40 CompGate60 External Wastegate is a Motorsport proven, cost effective external wastegate. The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8" NPT reference ports and are provided with the full range of available springs.

Color: Black
Spring force: 14 Psi / 1 Bar

Optional vailable:
- Also available In black, blue, red and purple
- Optional Wastegate position sensor version & upgrade
- Compressed Gas (ex: Co2) Version
- eWG (Electronically Actuated) Version

Features:

• Class leading, thermal performance
• Class leading, CFD & bench validated flow performance
• Class leading fatigue resistance
• Nitronic 60 valve guide & high temp 347 SS body
• 17/7 PH stainless steel springs
• Liquid actuator cooling option
• Strap type V-Band clamps
• User adjustable actuator position
• Modular design for actuator interchangeability

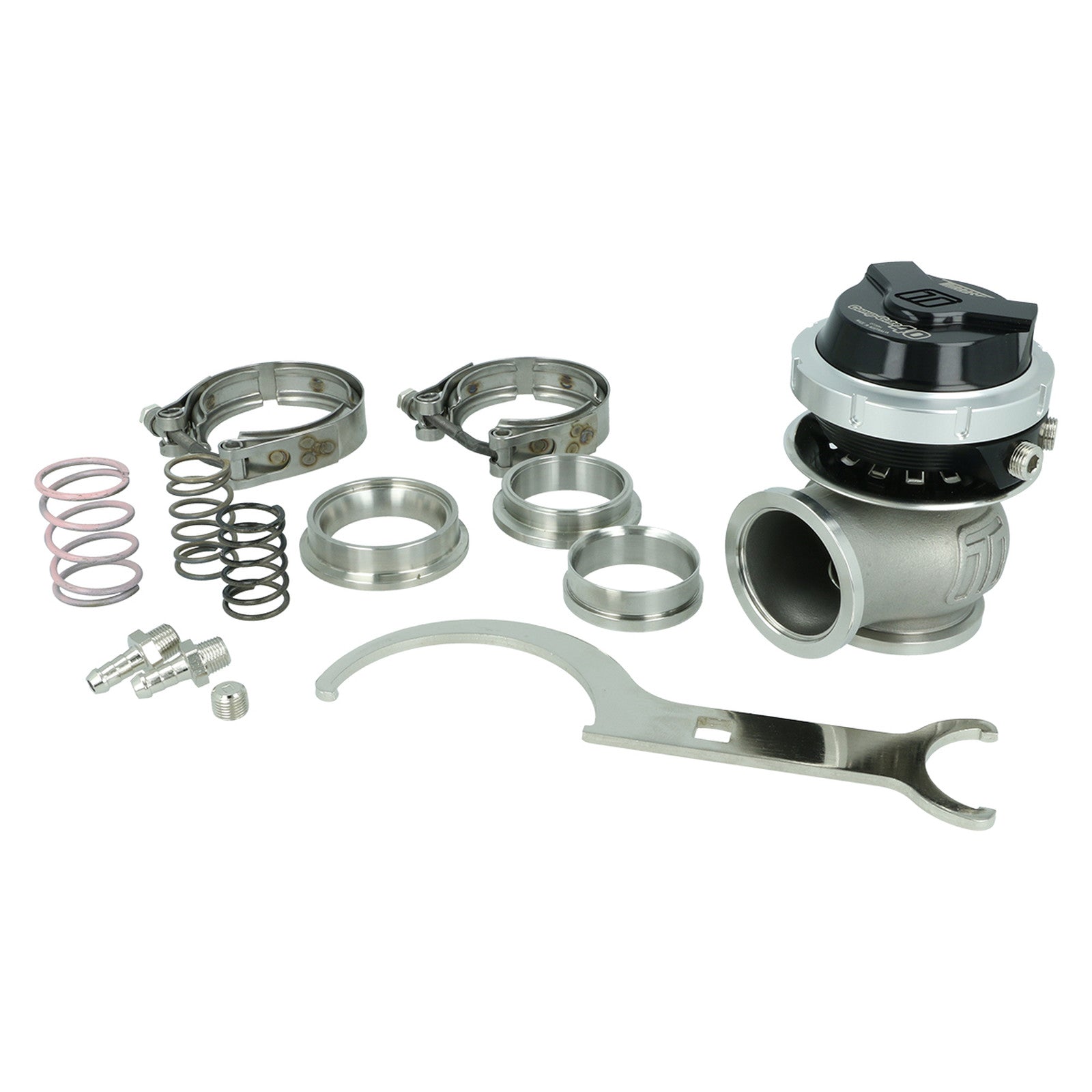

• GenV Wastegate unit
• All springs included in box
• Wastegate pre-fitted as per description
• GenV SS316 valve seat
• GenV inlet & outlet V-Band clamps
• GenV inlet & outlet flanges
• Mounting bolts and nuts
• Collar tool (master/slave)
• 4 x 1/8” NPT plugs (1x installed)
• 2 x 1/8” NPT nipples
• Turbosmart decal
