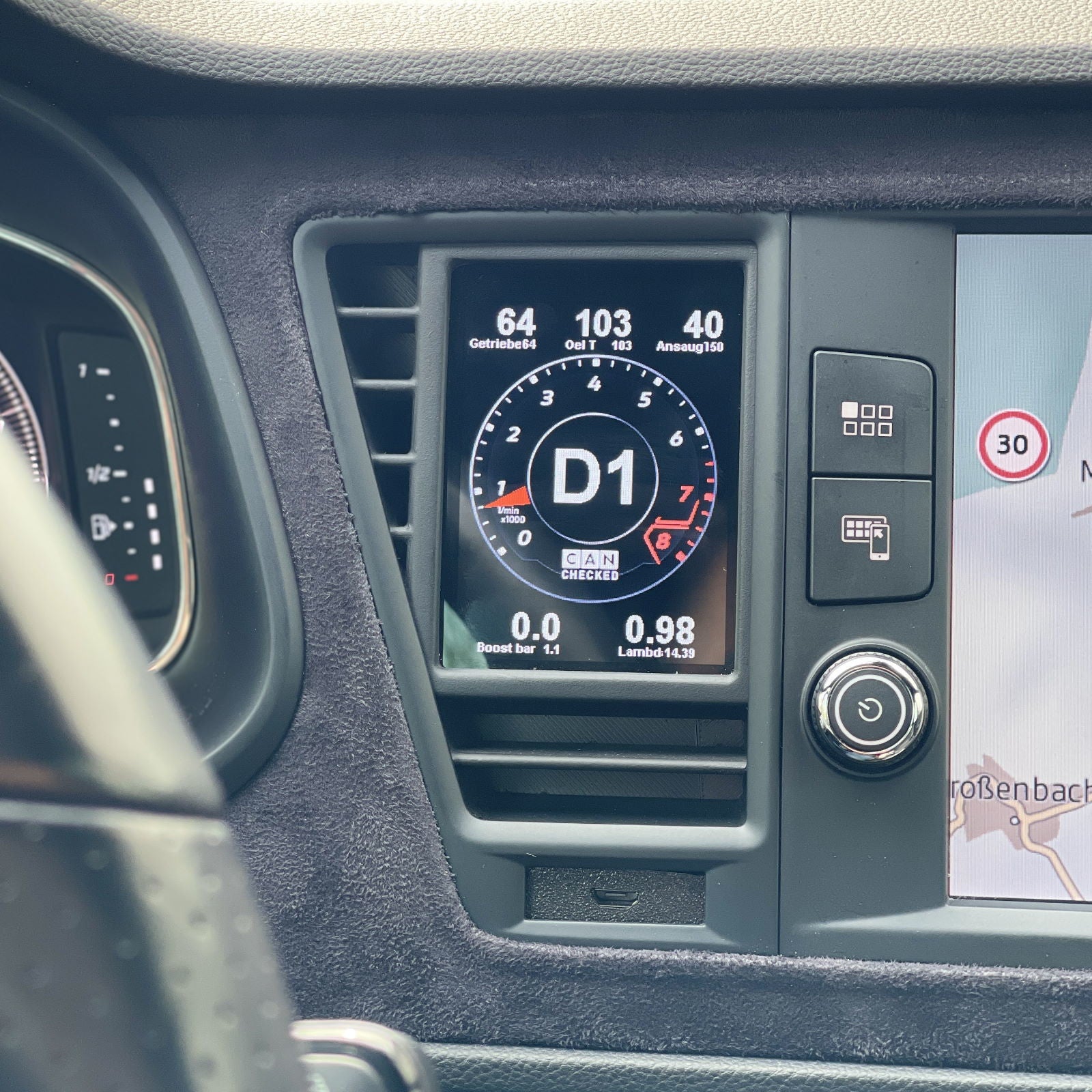

CANchecked MFD28 GEN 2 - 2.8" Display Seat Leon / Cupra 5F
Regular price
£429.99 GBP
Regular price
£429.99 GBP
Sale price
£429.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
New CANchecked GEN2 Multigauge for OBD2 values and analog sensors
With OBD 2 cable and vehicle-specific bracket for Seat Leon / Cupra 5F models air vent
Note: This display will be delivered with an OBD II adapter cable (1,50m). So installation is plug and play and all OBD 2 values which the engine control unit (ECU) outputs are displayed.The CANchecked OBD2 displays work for a wide range of cars and engines with OBD 2. If your OBD2 model don't work or don't show correct values, then your car OBD2 protocol isn't implement already. But within two working days CANchecked can add the correct .tri file for your engine/car model. Contact us if you need help or more information
The brand new second Generation (GEN 2) CANchecked displays offer:
- Improved grafics with better anti aliasing
- Swipe instead of touch tip
- The widgets are more precisely adjustable
- New warning pop-up functions
Key Features:
- 2.8 inch capacitive touch display with vehcile specific bracket for the air vent
- OBD 2 values can be displayed (adapter cable in included)
- 8GB SD Card Memory
- Up to 10 freely configurable display pages
- Connection via OBD 2 car port
- Two digital and four analog inputs for 0 - 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)
- Shift Light function
- Performance Meter (measures for example the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Popup function when values exceed or fall below
- Screen brightness adjustable
Views:
- 10 pages to configure freely- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) - Widgets via Drag'n'Drop movable and resizable
- Depending on the widgets color adjustment possible
As an alternative, the online configurator is available. Here, the views can be created in advance and then copied to the SD card via the export function.
Performance Monitor
- High speed CAN integration gives you access to up to 64 vehicle sensors that you can display in real time. Swap sensors on the fly using the 2.8" / 2.8" touchscreen and set up custom ranges and warning pop-ups using the DSS software.
- Swipe down from any page to diagnose malfunctions on the fly. CANchecked can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS and other systems.
- Easy access to log on demand and save to the internal SD card.
- CANchecked is precision designed and integrates perfectly with your vehicle's interior and retains the functionality of your car's vent.
- 4 Analog + 2 Digital inputs allow you to monitor third party sensors and devices. Future licences in development will unlock Haldex, Water Methanol, Ethanol Fueling integration.
- CANchecked comes with six pre-loaded dashboards. A total of ten can be customized using the included software and library of widgets.
- CANchecked can display up to ten pages and has access to 64 of your vehicle's sensors. Use the touch screen to navigate between each page and choose which sensor you want to display. Need more customization? You can personalize your views by changing the graphics, sensors andwidgets using the provided DSS software. We've pre-loaded some examples on your CANchecked Display to get you started.
- A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc...
- Haldex license (for GEN 2 in developing process! And only for first Generation of Haldex, f.e. Golf IV 4-Motion, Audi S3 (8L)
- Serial adapter (VEMS + Ecumaster without CAN)
- Other vehicle-specific integrations
- CANchecked 2.8 inch display
- Vehicle specific bracket for vent pod
- Cable set
- OBD 2 adapter cable (2 m)
- Fixing screws
- 8 GB micro SD card
- Micro SD Card Adpater
- Quickstart Guide
If available, installation manuals can be found on TurboZentrum or CANchecked website
The display can be custom configured via the website. The dbc-converter for the Can Bus protocol and the online configurator for the widgets, whereby this can also be set via the touch display.
The temperature range of the display is -10°C to 70°C.
12V are required as a voltage supply, 5V or 24V are optional possible.
TurboZentrum offer CANchecked vehicle-specific displays for a lot of cars. These can be found in our online shop for a lot of different cars. Further covers on request.
FAQ
Will the Display heat up in the air vent?No. The Displays are always protected against heat that’s flowing through the air vents.
Will the Air Vent still work with the display installed?
Yes it does. We’re always creating air vent solutions that still allow airflow passing by the display through special tunnels.
Can I change the appearance of the display, the units and scales?
Yes! With the different widget packs and the option to upload custom graphics you can completely individualize your display.
Can I use analogue inputs?
Yes there are 4 analogue inputs with the option to extend to more with our analogue connectors. So you can read Pressures, Temperatures, etc. We can also create complete packages for what you need!
What ECU Data can CANchecked Access?
By default, we deliver a prefabricated TRI file with your display. All sensors that are queried are defined here, f.e.:
- Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
- Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump
- Lambda / mixture: Lambda value, injection time, short-term lambda adjustment, longterm lambda adjustment
- Miscellaneous: Speed, air mass (g / s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, terminal 30 voltage, oil level, torque, gear...
- If values are missing, they can easily be added.
You can use the CANchecked Display Setup Software to upload your own graphics. They need to be in the following format:
- Image Type: 24bit BMP file (R8 G8 B8)
- Sizes: Background: 320 pixels X 240 pixels, Boost gauge: 240 pixels X 240 pixels, Tachometer: 160 pixels X 160 pixels
