CANchecked MFD28 GEN 2 - 2.8" Display BMW E9X
Couldn't load pickup availability
The new CANchecked GEN2 multifunction display for in-depth vehicle information and optional analog sensors

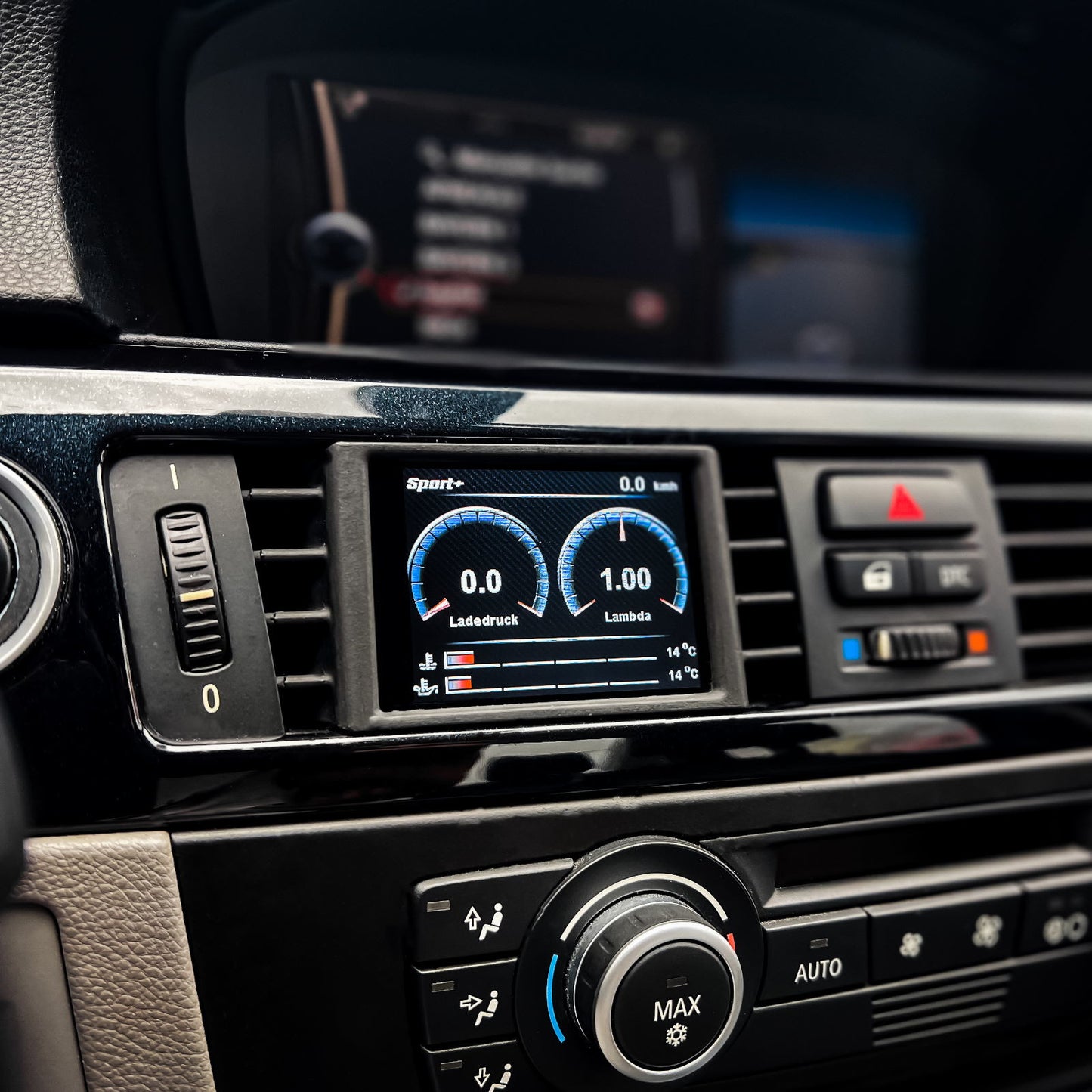

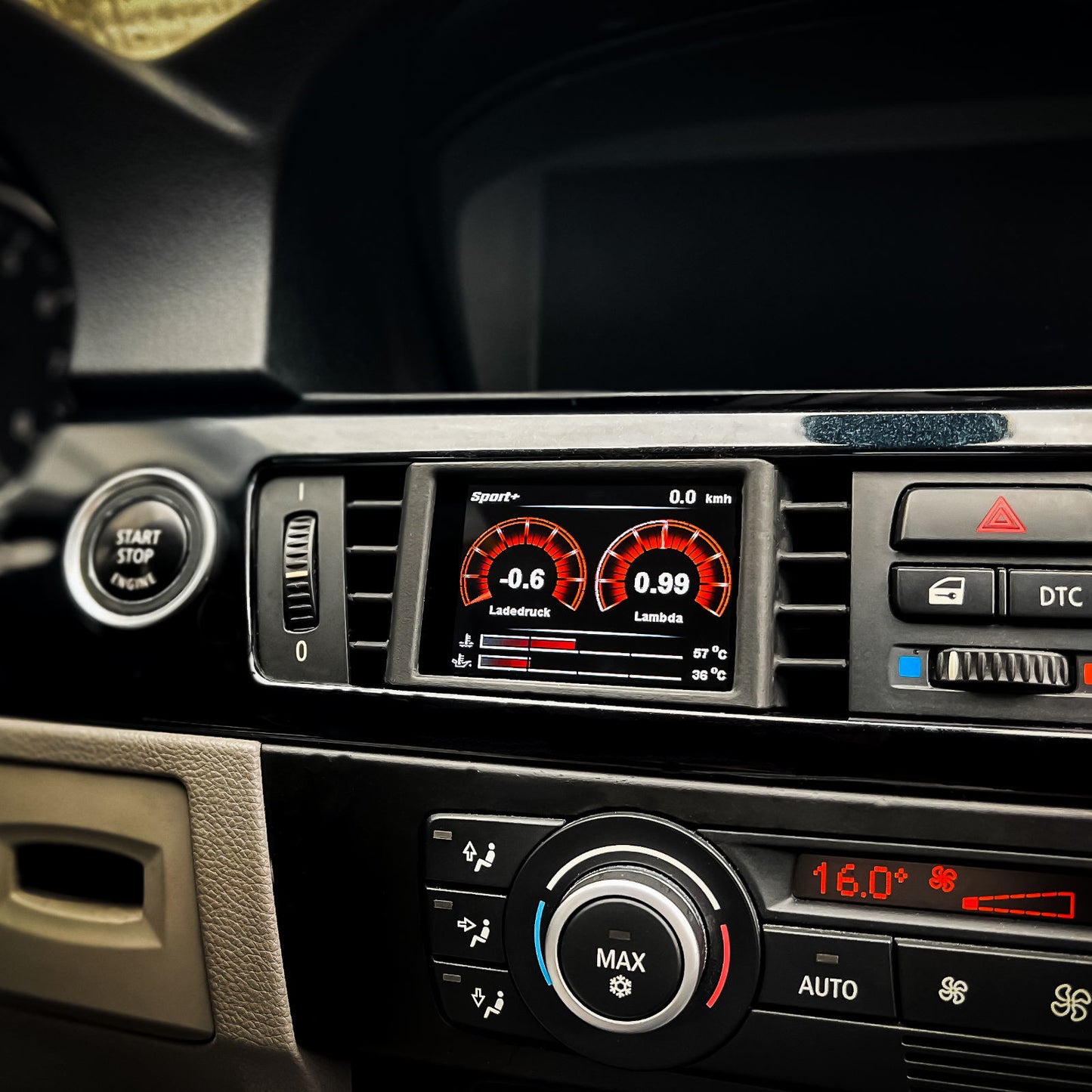

With vehicle-specific connection cable and bracket for BMW E9X - LHD models air vent
Note: This display is supplied with a manufacturer-specific connection cable. Thus, the OBD socket remains free and it can provide an even faster query speed and even more values compared to OBD solutions. The CANchecked displays work for a wide range of vehicles and engines with OBD 2. If your engine type does not work or does not show correct values, then your vehicle protocol is not yet implemented in the display. But within two business days CANchecked can add the correct .tri file for your engine/car model. Contact us for more information.
The brand new second Generation (GEN 2) CANchecked displays offer:
- Improved grafics with better anti aliasing
- Swipe instead of touch tip
- The widgets are more precisely adjustable
- New warning pop-up functions
Key Features:
- 2.8 inch capacitive touch display with vehcile specific bracket for the air vent
- Engine ECU values can be displayed (adapter cable in included)
- 8GB SD Card Memory
- Up to 10 freely configurable display pages
- Connection via the junction box in the footwell (see installation instructions)
- Two digital and four analog inputs for 0 - 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)
- Shift Light function
- Performance Meter (measures for example the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Popup function when values exceed or fall below
- Screen brightness adjustable (dims automatically with vehicle displays)
Views:
- 10 pages to configure freely
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) - Widgets via Drag'n'Drop movable and resizable
- Depending on the widgets color adjustment possible
As an alternative, the online configurator DSS is available. Here the views can be configured via USB during operation.
Performance Monitor
- High-speed CAN integration gives you access to up to 64 vehicle sensors that you can view in real time. The 2.8" touchscreen lets you swap sensors on the fly and set up custom ranges and alerts with DSS software.
- Swipe down from any page to instantly diagnose the ECU fault memory. CANchecked can read, diagnose and clear the faults for the engine in plain text.
- Easy access to log on demand and save to the internal SD card.
- CANchecked is precision designed and integrates perfectly with your vehicle's interior and retains the functionality of your car's vent.
- 4 analog and 2 digital inputs allow monitoring of sensors and devices from other manufacturers. Future licenses under development will allow integration of Haldex all-wheel drive controls, water-methanol injection systems and ethanol fuel systems.
- CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the included software and library of widgets.
- CANchecked can display up to ten pages and has access to up to 64 sensors on your vehicle. Use the touchscreen to navigate between pages and select which sensor you want to view. Need more customization options? You can personalize your views by customizing the graphics, sensors, and widgets using the included DSS software. We've preloaded some examples onto your CANchecked display to help you get started.
- A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc...
- Other vehicle-specific integrations
- CANchecked 2.8 inch display
- Vehicle specific bracket for vent pod
- Vehicle specific connection cablebr>- Fixing screws
- 8 GB micro SD card
- Micro SD Card Adpater
- Quickstart Guide
If available, installation manuals can be found on TurboZentrum or CANchecked website
The display can be custom configured via the website. The dbc-converter for the Can Bus protocol and the online configurator for the widgets, whereby this can also be set via the touch display.
The temperature range of the display is -10°C to 70°C.
12V are required as a voltage supply, 5V or 24V are optional possible.
TurboZentrum offer CANchecked vehicle-specific displays for a lot of cars. These can be found in our online shop for a lot of different cars. Further covers on request.
FAQ
Will the Display heat up in the air vent?No. The Displays are always protected against heat that’s flowing through the air vents.
Will the Air Vent still work with the display installed?
Yes it does. We’re always creating air vent solutions that still allow airflow passing by the display through special tunnels.
Can I change the appearance of the display, the units and scales?
Yes! With the different widget packs and the option to upload custom graphics you can completely individualize your display.
Can I use analogue inputs?
Yes there are 4 analogue inputs with the option to extend to more with our analogue connectors. So you can read Pressures, Temperatures, etc. We can also create complete packages for what you need!
What ECU Data can CANchecked Access?
By default, we deliver a prefabricated TRI file with your display. All sensors that are queried are defined here, f.e.:
- Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
- Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump
- Lambda / mixture: Lambda value, injection time, short-term lambda adjustment, longterm lambda adjustment
- Miscellaneous: Speed, air mass (g / s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, terminal 30 voltage, oil level, torque, gear...
- If values are missing, they can easily be added.
You can use the CANchecked Display Setup Software to upload your own graphics. They need to be in the following format:
- Image Type: 24bit BMP file (R8 G8 B8)
- Sizes: Background: 320 pixels X 240 pixels, Boost gauge: 240 pixels X 240 pixels, Tachometer: 160 pixels X 160 pixels
